• Safety spells S.E.A.T. B.E.L.T.S
• Seat belts are most effective when seatbacks are in upright position.
• Do not wear shoulder belt under your arm or behind your back.
• Do not wear twisted seat belt.
• Replace the seat belt assembly after it has been worn in a severe impact even if damage to the assembly is not obvious
• Every person in the vehicle should wear his seat belt, including infants.
• Never hold a child in arms or lap when riding in vehicle. The violent forces during the crash will tear the child from your arms and throw the child against the interior.
• Do not allow passengers to change seats while the vehicle is moving.
• Each seat belt is designed to restrain only one occupant.
• Do not use accessories on seat belts.
• Do not modify seats.

• Open the tailgate.
• Find the plastic hex bolt cover and remove the cover.
• Use the wheel brace to loosen the bolt enough to lower the spare tyre.Turn the wheel brace counterclockwise until the spare tire reaches the ground.
• After the spare tire reaches the ground, continue to turn the wheel brace counterclockwise, and draw the spare tire outside. Never rotate the wheel brace excessively, otherwise the spare tire carrier may be damaged.
• Remove the retainer (1) from the centre of the spare tire.

• Prior to your long trip, where-in you plan to drive your own vehicle, there are certain precautions and planning that is required. We hope that the following checklist will help you have a smooth and enjoyable trip.
• Get your car a checked up at nearest Hyundai Dealership.
• Get the battery and cables properly checked . It is advisable to have a new battery than taking a risk with a problematic or old battery.
• Check the fuel system for clogged or leaking pipes.
• Clean the cleaners-the air cleaner, the breather cap, the fuel pump sediment bowl and strainer, and the fuel filter.
• Check the and oil filter replace if necessary. Carry extra can of oil in the trunk.
• Hose pipes wear out on the inside. Pinch the pipes; replace if they feel spongy. Check clamps for tightness. It is advisable to carry spare hose pipes, and a tinful of water.
• Get the brakes and clutch adjusted if necessary.
• Get the wheel alignment checked and adjusted properly to have a better feel of the car and to reduce tire wear.
• Get the tires checked. Make sure the spare is in good condition and properly inflated.
• Do carry an emergency First Aid Kit, handy for any mishap enroute.

• Even in vehicles with airbags, you and your passengers must always wear the safety belts provided.
• In order to avoid unnecessary and perhaps severe air bag injuries, always sit as far back as possible from the steering wheel while maintaining comfortable control of the vehicle.
• We recommend that your chest be at least 250 mm (10 inches) away from the steering wheel.
• Air bags can only be used once.

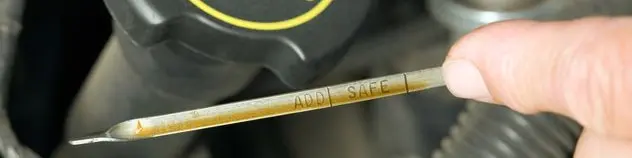

Checking the engine oil level

• Be sure the vehicle is on level ground.

• Start the engine and allow it to reach normal operating temperature.
• Pull the dipstick out, wipe it clean, and re-insert it fully.
• Pull the dipstick out again and check the level. The level should be between F and L. If it is near or at L, add enough oil to bring the level to F.
• Do not overfill and use only the recommended Hyundai engine oil.

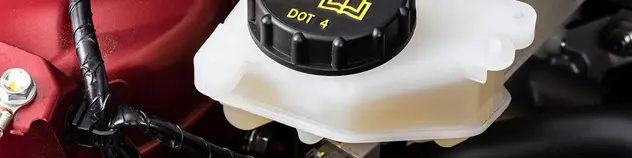

Checking the brake fluid level

• Be sure the vehicle is on level ground.
• The fluid level should be between the MAX and MIN marks on the side of the reservoir. Before removing the reservoir cap and adding brake fluid, clean the area around the reservoir cap thoroughly to prevent brake fluid contamination.
• If the level is low, add fluid to the MAX level. The level will fall with accumulated mileage. This is a normal condition associated with the wear of the brake linings.
• If the fluid level is excessively low, have the brake system checked by an authorized HYUNDAI dealer. Use only the specified brake fluid.

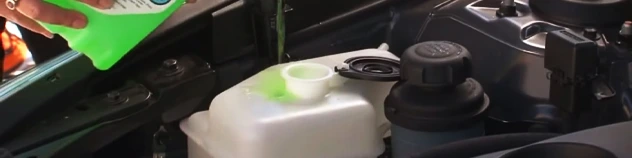

Checking the engine coolant level

• Never attempt to remove the radiator cap whilst the engine is operating or hot.
• The coolant level should be filled between the F (MAX) and L (MIN) marks on the side of the coolant reservoir when the engine is cool.
• If the coolant level is low, add enough specified coolant to provide protection against freezing and corrosion. Bring the level to F (MAX), but do not overfill.
• If frequent coolant refill is required, see an authorized HYUNDAI dealer for a cooling system inspection.

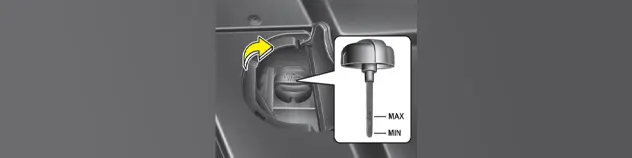

Checking the power steering fluid level

• Be sure the vehicle is on level ground.
• The fluid should be between the MAX and MIN marks on the side of the power steering reservoir at the normal temperature.
• If the level is low, add fluid to the MAX level.
• Use only the specified power steering fluid.
• In the event the power steering system requires frequent addition of fluid, the vehicle should be inspected by an authorized HYUNDAI dealer.

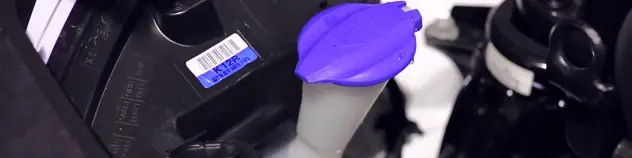

Checking the washer fluid level

• The reservoir is translucent so that you can check the level with a quick visual inspection. Check the fluid level in the washer fluid reservoir and add fluid if necessary. Plain water may be used if washer fluid is not available. However, use washer solvent with antifreeze characteristics in cold climates to prevent freezing.
• Do not use radiator coolant or antifreeze in the washer fluid reservoir.

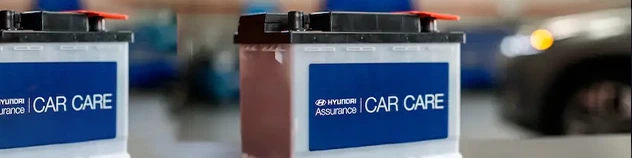

• For best battery service : Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.
• Rinse any spilled electrolyte from the battery immediately with a solution of water and baking soda.
• If the vehicle is not going to be used for an extended time, disconnect the battery cables.

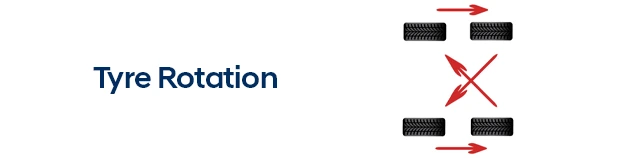

• To equalize tread wear, it is recommended that the tires be rotated every 10,000 Km or sooner if irregular wear develops. During rotation, check the tires for correct balance.
• When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire pressure, improper wheel alignment, out-of –balance wheels, severe braking or severe cornering. Look for bumps or bulges in the tread or side of tire.
• Replace the tire if you find either of these conditions. Replace the tire if fabric or cord is visible. After rotation, be sure to bring the front and rear tire pressures to specification and check lug nut tightness.

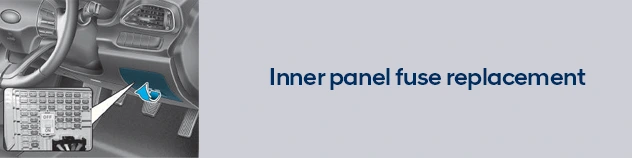

Inner panel fuse replacement

• Turn the ignition switch and all other switches off.
• Open the fuse panel cover.
• Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.
• Check the removed fuse; replace it if it is blown.
• Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
• If the headlights or other electrical components do not work and the fuses are OK, check the fuse block in the engine compartment. If a fuse is blown, it must be replaced.
• If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.

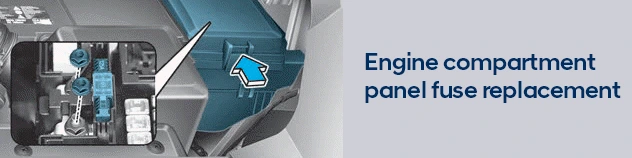

• Turn the ignition switch and all other switches off.
• Remove the fuse box cover by pressing the tap and pulling up.
• Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
• Push in a new fuse of the same rating and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
• After checking the fuse box in the engine compartment, securely install the fuse box cover. If not, electrical failures may occur from water leaking in.
• A vehicle's electrical system is protected from electrical overload damage by fuses.
• The vehicle has generally 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery.
• If any of your vehicle's lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted.
• If the electrical system does not work, first check the driver's side fuse panel. Always replace a blown fuse with one of the same rating.

• Wash your car thoroughly and frequently atleast a month.
• While washing pay special attention on removal of any dirt, salt or any foreign particle.
• For better washing, you may use a car washing shampoo to wash the vehicle.
• Caution : Do not use strong soap, chemical detergents or hot water to wash the vehicles.
• Never wash the engine compartment with a water jet as it may cause failure of electrical components located in engine compartment.

• Prevent perfume and cosmetic oil from contacting the dashboard. If they do contact wipe off immediately.
• Remove dust and loose dirt from the upholstery using a vacuum cleaner at regular intervals.
• If the interior glass surface of the vehicle become fogged due to deposition of oily, greasy and waxy film, the same must be cleaned using a glass cleaner..
• If the carpet becomes wet, do not let it be there for long, it may create a musty smell and corrode the floor.

Jacking instructions

• The jack is provided for emergency tire changing only. To prevent the jack from 'rattling' whilst the vehicle is in motion, store it properly. Follow jacking instructions to reduce the possibility of personal injury.

Removing and storing the spare tire

• Your spare tire is stored underneath your vehicle, directly below the cargo area.

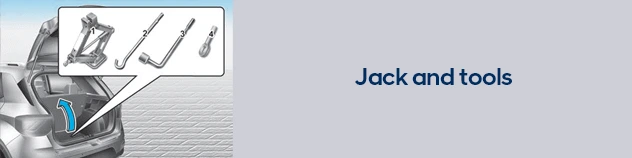

Jack and tools

• The jack, jack handle, wheel brace are stored in the luggage compartment.
• Pull up the luggage box cover to reach this equipment : Jack handle, Jack & Wheel brace

To store the spare tire:

• Lay the tire on the ground with the valve stem facing up.
• Place the wheel under the vehicle and install the retainer (1) through the wheel centre.
• Turn the wheel brace clockwise until it clicks.

• Park on a level surface and apply the parking brake firmly.
• Shift the shift lever into R (Reverse).
• Activate the hazard warning flasher.
• Block both the front and rear of the wheel that is diagonally opposite the jack position.
• Loosen the wheel nuts counterclockwise one turn each, but do not remove any nut until the tire has been raised off the ground.
• Place the jack at the front or rear jacking position closest to the tire you are changing. Place the jack at the designated locations under the frame. The jacking positions are plates welded to the frame with two tabs and a raised dot to index with the jack.
• Insert the jack handle into the jack and turn it clockwise, raising the vehicle until the tire just clears the ground. This measurement is approximately30 mm (1.2 in). Before removing the wheel nuts, make sure the vehicle is stable and that there is no chance for movement or slippage.
• Loosen the wheel nuts and remove them with your fingers. Slide the wheel off the studs and lay it flat so it cannot roll away. To put the wheel on the hub, pick up the spare tire, line up the holes with the studs and slide the wheel onto them. If this is difficult, tip the wheel slightly and get the top hole in the wheel lined up with the top stud. Then jiggle the wheel back and forth until the wheel can be slid over the other studs.
• To reinstall the wheel, hold it on the studs, put the wheel nuts on the studs and tighten them finger tight. The nuts should be installed with their tapered small diameter ends directed inward. Jiggle the tire to be sure it is completely seated, then tighten the nuts as much as possible with your fingers again.
• Lower the vehicle to the ground by turning the wheel brace counterclockwise.

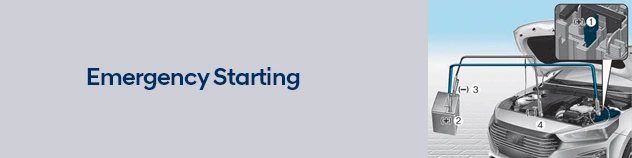

Emergency Starting

• IF THE ENGINE DOES NOT START : If engine doesn't turn over or turns over slowly : Check the battery connections to be sure they are clean and tight.
• Turn on the interior light. If the light dims or goes out when you operate the starter, the battery is discharged.
• Check the starter connections to be sure they are securely tightened.
• Do not push or pull the vehicle to start it.
• If engine turns over normally but does not start
• Check fuel level.
• With the ignition switch in the LOCK/OFF position, check all connectors at ignition, coil and spark plugs. Reconnect any that may be disconnected or loose.
• Check the fuel line in the engine compartment.
• If the engine still does not start, call an authorized HYUNDAI dealer or seek other qualified assistance. Connect cables in numerical order and disconnect in reverse order.

Jump starting

• Jump starting can be dangerous if done incorrectly. Therefore, to avoid harm to yourself or damage to your vehicle or battery, follow the jump starting procedures. If in doubt, we strongly recommend that you have a competent technician or towing service to jump start your vehicle.

Jump starting procedure

• Make sure the booster battery is 12-volt and that its negative terminal is grounded.
• If the booster battery is in another vehicle, do not allow the vehicles to touch.
• Turn off all unnecessary electrical loads.
• Connect the jumper cables in the exact sequence shown in the illustration First connect one end of a jumper cable to the positive terminal of the discharged battery (1), then connect the other end to the positive terminal on the booster battery (2). Proceed to connect one end of the other jumper cable to the negative terminal of the booster battery (3), then the other end to a solid, stationary, metallic point (for example, the engine lifting bracket) away from the battery (4). Do not connect it to or near any part that moves when the engine is cranked. Do not allow the jumper cables to contact anything except the correct battery terminals or the correct ground. Do not lean over the battery when making connections.
• Start the engine of the vehicle with the booster battery and let it run at 2,000 rpm, then start the engine of the vehicle with the discharged battery
• If the cause of your battery discharging is not apparent, you should have your vehicle checked by an authorized HYUNDAI dealer.

CAUTION - Battery cables

• Do not connect the jumper cable from the negative terminal of the booster battery to the negative terminal of the discharged battery. This can cause the discharged battery to overheat and crack, releasing battery acid.

CAUTION

• Use only a 12-volt jumper system. You can damage a 12-volt starting motor, ignition system, and other electrical parts beyond repair by use of a 24-volt power supply (either two 12-volt batteries in series or a 24-volt motor generator set).

CAUTION

• Be sure to replace the burned-out bulb with one of the same wattage rating. Otherwise, it may cause damage to the fuse or electric wiring system.
• Open the bonnet.
• Loosen the retaining bolts and remove the headlight assembly from the body of the vehicle.
• Disconnect the power connector from the back of the headlight assembly.
• Remove the headlight bulb cover by turning it counterclockwise.
• Disconnect the headlight bulb socket connector.
• Unsnap the headlight bulb retaining wire by depressing the end and pushing it upward.
• Remove the bulb from the headlight assembly.
• Install a new headlight bulb and snap the headlight bulb retaining wire into position by aligning the wire with the groove on the bulb.
• Connect the headlight bulb socket connector.
• Install the headlight bulb cover by turning it clockwise.
• Connect the power connector to the back of the headlight assembly.
• Reinstall the headlight assembly to the body of the vehicle.

NOTICE

• If the headlight aiming adjustment is necessary after the headlight assembly is reinstalled, consult an authorized HYUNDAI dealer.
• Prior to working on the light, firmly apply the parking brake, ensure that the ignition switch is turned to the 'LOCK' position and turn off the lights to avoid sudden movement of the vehicle and burning your fingers or receiving an electric shock.

• Rain and wet roads can make driving dangerous. Here are a few things to consider when driving in the rain : Slow down and ensure more distance between you and other vehicles.

• Stay toward the middle lanes as water tends to pool in the outside lanes.
• Keep your windshield wiping equipment in good condition. Replace your windshield wiper blades if necesary.
• Be sure your tires are in good condition to avoid any skidding during quick stop on wet pavement. Turn on your headlights to make it easier for others to see you.
• If you must go through puddles, try to drive through them slowly.
• If brakes are wet, apply them lightly while driving until normal braking operation returns.

• Night driving presents more hazards than driving in the daylight. For safe driving, here are some important tips to remember : Slow down and keep more distance between you and other vehicles.

• Switch your rear view mirrors to night mode to reduce the glare from other driver's headlights.
• Keep your headlights clean and properly aimed on the oncoming vehicles.
• Avoid staring directly at the headlights of oncoming vehicles to prevent temporary blindness.
• Avoid using high beam in city driving however its advisable to use them during highway driving.

• Severe weather conditions of winter result in greater wear and other problems. To minimise them, here are a few suggestions : Use recommended high quality ethylene glycol coolant because it prevents corrosion in the cooling system, lubricates the water pump and prevents freezing.

• Visually inspect the battery and cables. Contact our authorized dealer or a service station for the inspection of the battery charge level.
• Check your spark plugs and ignition wiring and components to be sure they are not cracked, worn or damaged in any way.
• Use approved window washer anti-freeze solution in the system to prevent the water from freezing.
• Don't let your parking brake freeze.
• Periodically check underneath the vehicle and don't let ice and snow accumulate there..
• Check tyre pressure: A chilly morning is probably a good time to check tyre inflation pressures.
• Turn on the defroster and blower to eliminate fogging inside the car.
• Use low-beam lights during fog.

• In case you come across a flooded-out road ahead, turn around and find an alternative route to your destination. Avoid driving through flooded areas unless you are sure the water level is lower than the bottom of the wheel hub - Drive through any water slowly.

• Allow adequate stopping distance because brake performance may be affected.
• After driving through water, dry the brakes by gently applying them several times while the vehicle is moving slowly.

• Car parking is actually a skilled task which needs to be performed perfectly. You need to be very careful and alert while parking a car. Most Indian roads have become crowded thus finding a suitable parking place has become an unwanted challenge. Of course, if parking rules and regulations are strictly taken care of then no doubt, parking can become an effortless task.

• As observed most drivers face problems with reverse parking and find it difficult to manage a trouble-free reverse parking. To help you, here are the useful steps to follow : Always use both outside rearview mirrors.
• Shift the gear to the reverse mode then release the clutch slowly while simultaneously pressing the accelerator pedal.
• Just as the car starts moving, keep the pressing of accelerator pedal steady and then release the clutch completely.
• The car starts moving slowly at a regulated speed. Don't forget to keep track of the road with the help of outside rear view mirrors. If there is a car behind, reverse slowly until the corner of the other car appears in your side window. Turn the steering wheel fully to the left and check your mirrors to ensure safety of the other car. Keep on reversing until the front of your car lines up with the back of the other car. Ensure that there is enough room for you to clear the back of the other car. Then, turn the steering wheel fully to the right which will park the car in a hassle free manner.

Safe Parking

• Car parking seems simple, but it often results in fender-bender incidents, and sometimes serious accidents. Parking can be difficult in crowded lots and streets, but it can be done in a safe manner by following certain tips.

When parking on the street

• Choose an area that is well-lit, busy and ideally monitored by CCTV, as this is an ideal deterrent for potential attackers.
• Do not leave you valuable things visible in the car.
• Put your children in the car from the pavement side.

When parking in a car park

• Try and choose one that is well lit with security patrols, restricted entry and exit points.
• Always check closing times.
• Do not leave your valuable things visible in the car.
• Try and park close to the lift or stairs as more people will be passing by.
• Reverse into the parking space so you can get out quickly if you need to; through the windscreen you'll also be able to see people approaching your car.
• Avoid parking next to side-opening, high vans; if one is parked next to your driver's door when you come back, get into your car through the passenger door.

When you return to your car

• Check around your car and also check the back seats for intruders before you get in.
• Get in as quickly as possible especially if it's dark and lock the doors if you don't feel safe.
• In winter, keep a can of de-icer and a scraper in your car so you don't have to spend unnecessary time out of your car scraping the windows.

Must Carry Items

• Drivers License ,Vehicle Owners manual, Car Registration copy, Proof of Insurance ,Traveler's Cheques, Torch and Batteries ,First Aid Kit ,Jack, Wheel Brace, Puncture Kit, Pump, Tire Lever, Spare Wheel, Bulbs, Fuses,Set of Tools, Soap ,Tow Rope and Spade.
